Specifications:
Wing Span: 37"
Wing Area: 224 in.sq.
Weight: 15-24oz.
Length:27"
100mph+ speed rated if you wish-80 to 300 watts.

Seen flown at SEFF, NEAT and the Mid-AM. If your ready for something new and hot that isn't the same mindless drivel that everybody else has, this is it! Wing attaches without any screws or rubber bands. Pop on, pop off! Screws and rubber bands have been around for centuries, we do it better here! Kit features our new Space-Frame-Doubler construction, a Radical RC innovation resulting in ultra light weight yet rugged design.

Select from many options below or design your own power system. The E-Hornet will accept a wide variety of motor systems.

Dan Zaleski's build thread on the E-Zone.

SALE!

Capable of big sky flying or ball park low-n-slow! You can trust the Quick Wing in any flight condition. Any 20mm brushless motor system capable of turning a 4-6" prop at 50-150 watts or more will work well. She is sure to please the most speed hungry wing fanatic while still retaining very good slow speed handling characteristics. Quick "3D Jigsaw Puzzle" assembly in only 1-2 hours. World class laser cutting and design make this one of the quickest and most enjoyable balsa models you will ever build. You'll be amazed at the wide speed envelope the Quick Wing has. It easily goes from high speed to ball park flying with no bad habits. I'm totally comfortable recommending this kit as a good 2nd or 3rd model as long as you keep the power system modest. Advanced pilots can take the power as far as they like.

Note, with the advent of the new pusher APC-E props you can do a counter rotating setup. For counter rotating get the spinner sets that say CCW and CW (Counter clock wise and clockwise). Getting two CCW spinners means your going to run both props in the same direction. Most 20mm motors have 2mm shafts and require the PS22 2mm shaft adapter. If your using a motor with a large shaft like the RRC 2880 below you won't need those adapters.

Pilot Report:
Dave,

Wanted to thank you for the fantastic design of the 20mm Double Trouble Wing. I built this kit up and put some more than modest power up front, and I was impressed with how well it flew. Almost straight up at full power. Stable as an advanced trainer once I made one C.G. adjustment. Slows down to a crawl. Easier to see than my Quick Wing 20mm - which is also a fantastic little performer. The guys at the local flying field love it when I break out these little flyers.

My Double comes in at exactly 16 ounces, and with two Rimfire 20-40-2080 in-runners with 6x4" props - counter-rotating - and a couple 2 cell 1000 MaH LiPo's, that gives quite a nice power to weight ratio. The counter rotating props are nice as there is symmetrical thrust. Loops are perfectly straight. Vertical climbs are effortless.

Sam Lindsay, Flight Instructor, Sarasota, FL

See Quick Wing Video Here!

SALE!

Possibly the worlds smallest servo driven flying wing ever! I wanted something different from the herd of swept wing pushers you seem to see everywhere. Being In a bit of a Gothic mood at the time, the Wicked Wing was born. This little beast really moves out on a simple 50XC brushed motor. Of course you could fly it with any 12mm brushless motor of your choice and even many of the micro outrunners.
It needs about 14 watts to fly with authority.
Brushless is not necessary but listed below for those wanting a poisonous Wicked Wing.
2 Small servos under 6 grams, an ESC (min 2 amps for the 50XC brushed motor) and a very small RX. We like the Berg 4L for this project the best. This model can be very fast, it's not a good first or second airplane choice. If you're flying well and want something to challenge your skills and wow your friends then this it. remember, at 50mph it covers 77 feet in 1 second! Judicious throttle control is a definite a requirement. This model goes together like a 3D jigsaw puzzle. You will have it framed up and ready for finish in about 1 hour. Fly weight is about 3oz, Span is about 11". About the size of the top wing on a Micro Bipe!

If you select a receiver (RX), tell us which channel you need at checkout.
"I ordered your wicked wing kit a few months ago and just now finished it and flew it for the first time and wanted to let you know how pleased I am with it.
It is a very nice kit and fun to assemble (like a 3D Puzzle). Flying this little thing is challenging but fun. I am surprised of the durability, I have flown it in the ground with about 1ft tall grass several times, several unexpected touch and goes and my cartwheel landings look worse than the crashes.
However, the plane looks as good as new and I am still using the original prop. Just wanted to give some positive feedback.
Thanks, Marlan L. Kingsley"

* asterisk Items are my first and best picks to complete this Kit.

SALE!

If you select a receiver (RX), tell us which channel you need at checkout.

SALE!

Made in Colorado, USA

Specifications:

• Wing Span: 27 in
• Overall Length: 23 in
• Wing Area : 265 sq. in.
• Flying Weight: 12.5 oz
• Wing Loading: 6.8 oz/sq. ft.
• Controls Required: 3 channel, R/E/T
• Construction: Balsa / Ply
• Category: Park Flyer

Includes:

• Illustrated instruction manual
• Hand selected laser-cut AAA balsa and hardwood stock
• Full length leading edge, turbulator, and spar wood stock
• Pre-bent wire landing gear
• Profile pilot and scale motor detail
• Comprehensive hardware package

Required Electronics (or similar):

• Brushed Motor*: GWS 350C-CS 5.33:1
• Speed Control: 10A
• Propeller: GWS 10x4.7 SF
• Battery: LiPo 7.4V 800 mAh (25C)
• Servos: Hitec HS-55 (2 required)

*This product was originally designed for a GWS brushed power system. These are no longer widely available. The upgrade path to brushless is given below:

• Motor: Sport Park BL370 (1100KV) - requires EFLM1915 Motor Mount
• ESC: 20A
• Propeller: APC 9x4.7 SF

Required finishing items:

• Trexler #6-G Balloon Wheels or similar 3.5 inch diameter foam wheel
• Covering film: 2 Rolls ParkLITE film
• CA Glue: Thin, Medium, and Thick Adhesives

SALE!

The FrSky Tandem X20 Series is a dual-band telemetry radio system, its development has drawn on valuable feedback from FrSky's extensive customer base, experience with previous radios.

The Tandem series introduces many new features such as a color touch screen display, underpinned by an ergonomic design that provides unprecedented comfort when held.

On the RF side, FrSky has introduced a powerful and reliable TD dual-band RF system, which features the advantages of the FrSky 900MHz and 2.4GHz in one combined RF system. The TD dual-band RF system is characterized by true simultaneous dual-band remote control with telemetry, and superb end-to-end 4ms latency performance. When combined with ETHOS, a completely new operating system, FrSky's Tandem X20 Series provides users with a powerful, intuitive, and flexible experience to enjoy across the entire world of RC.

With the optional IRX4 4-N-1 module, the Tandem X20S will work with a variety existing RC ptotocal including: Spektrum DMS2 & DMSX, Futaba S-FHSS and others.

The Tandem X20S comes in three faceplate colors: Red, Blue and Black. Please specify color in the comment section. Also,the x20S includes: carring case, gimbal protectors, rubber covers for switches and Neck Strap

SPECIFICATIONS:

4S K6 Series 450. 45C (20.25 Amps) Constant, 90C (40.5 amps) Burst. High discharge cells.
Weight: 71 grams
Measures: 55 x 31 x 19mm

LAST ONES LEFT - CLOSEOUT, NO RETURNS

4 LEFT IN STOCK AS OF 1/13/25

Input Voltage: DC 11-18V up 30A (depending on charge settings)
Input Connectors: 4mm banana plug with 12 AWG wire
Charging Current: 0.1~10.0A (max 200W, total 400W)
Discharging Current: 0.1~5.0A (max 25W, total 50W)
Balance Connector Type: JST-XH, Poly Quest, Hyperion
Size: 8.2 x 5.3 x 2.2" (200 x 135 x 57mm)
Weight: 1.6lbs (727g)

DISCONTINUED BY HITEC

SOLD OUT

The Phoenix Edge series is intended for use in helicopters ranging from 450 to 800 size, and fixed wing aircraft up to 1.20 size and larger. As always, the Edge series of controllers offer industry-leading software functions, data logging, and USB programming capability via Castle Link USB adapter (free with included coupon).

Specifications Ice 80HV:
Dimensions:2.0" (50.8mm) x 2.8" (71.9mm) x 0.9" (23.2mm)
Max Input Voltage 3S to 12S Lipo, 9S A123, 22 cells Nicad or NiMH.
Max Continuous 80 Amps
Brake yes, on/off
Reversible yes - change any two wires
Low Voltage Cut-off, auto Lipo or NiMH/NiCd
PWM Switching Rate: 8,12 or 16 kHz Weight (w/wires) 4.4 oz. (124.6g)
Universal RX Connector
BEC: Use external BEC

Castle Link Compatible

Castle Creations Warranty Info.

The Phoenix Edge series is intended for use in helicopters ranging from 450 to 800 size, and fixed wing aircraft up to 1.20 size and larger. As always, the Edge series of controllers offer industry-leading software functions, data logging, and USB programming capability via Castle Link USB adapter (free with included coupon).

Specifications Ice 60HV:
Dimensions:2.0" (50.8mm) x 2.8" (71.9mm) x 0.9" (23.2mm)
Max Input Voltage 3S to 12S Lipo, 9S A123, 22 cells Nicad or NiMH.
Max Continuous 60 Amps
Brake yes, on/off
Reversible yes - change any two wires
Low Voltage Cut-off, auto Lipo or NiMH/NiCd
PWM Switching Rate: 8,12 or 16 kHz Weight (w/wires) 3.9 oz. (110.2g)
BEC: Use External BEC
Universal RX Connector

Castle Creations Warranty Info.

15 AMP control with BEC. . More versitile, capable of flying anything S-400 and below and will handle most 480 setups as well. Note, this control is inexpensive and works well but is about 3x as big as a GFS 12 or Castle 20. Weight 17g, Size 27.5x19.5x6mm.GWS Products warranty info.

LIMITED QUANTITIES, WHILE SUPPLIES LAST!

Non-warranty; Closeout; No returns accepted for any reason.

Castle Creations Warranty Info.

SOLD OUT, MANUFACTURER BACKORDER, PENDING PRODUCTION

Moreover, this module works seamlessly with the Multi-module project on github and is based on an ARM microcontroller. All available protocols are included in serial mode, which utilizes a serial protocol to communicate with your transmitter without the need for any hardware modifications. However, it is recommended to update your transmitter's firmware to the latest version before selecting and binding the model protocol from the Model Settings menu. For telemetry-capable transmitters, the integration of telemetry is effortless with the transmitter firmware.

The FrSky Multi Protocol Module operates at a voltage range of 5-9V, with an operating current of <=180mA, and operates at a frequency of 2.4G ISM band. It has a high RF power of +22dBm and is equipped with an ARM CORTEX-M(128K ROM, 20K RAM) MCU. The module weighs 32g and comes with 1 MPM LITE TX Module in the package.

TEMPORARILY OUT OF STOCK

The company that made these motors is long since gone. Seems like these sold for $79 or so. I don't remember exactly. Here is a super bargain, painfully below actual cost. All new, when they are gone, they are gone. All sales of Till It's Gone merchandise is AS-IS and Final.

- Highly efficient Bifurcated Windings (Patented)

- Highest Temp rated Magnets (FeNdB) and Wire in the R/C Motor community

- Upgraded, ABEC 3 Stainless steel protected ball bearings

- Easy service motor housing

- Anodized motor body CNC machined from aircraft grade aluminum

- Heat treated 416 grade Stainless Steel Shaft

- Suitable for GWS or Planetary gearboxes & Ducted Fans. RRC Planetary 3.8:1 gearbox requires 2.3mm shaft motor. GWS requires 2mm, Himax Gearbox requires 2mm, RRC Offset gearbox 2 or 2.3mm shaft motors.

3600KV Motor Application Chart:

Gear Ratio	Prop	Lipo	Amps	Thrust Oz.	Pitch Speed	Watts
Direct	4.1-4.1	2S	10.5	9	83	79
Direct	4.7-4.2	2S	15.1	13	78	113
Direct	4.75-4.75	2S	16.6	13	85	125
Direct	4.2-2	3S	12.5	17	59	141
3.8:1	8-4	3S	7.8	18	35	88
3.8:1	8-6	3S	10.8	21	51	122
3.8:1	9-5	3S	13.2	27	41	149
3.8:1	10-3.8	3S	14.5	29	30	168
5.33:1-C	12-6	3S	16.5	36	34	186
6:1-D	13-6.5	3S	14.1	34	31	159

4200KV Motor Application Chart:

Gear Ratio	Prop	Lipo	Amps	Thrust Oz.	Pitch Speed	Watts
Direct	4.2-2	2S	11.5	11	48	86
Direct	4.1-4.1	2S	17.9	13	97	134
3.8:1	8-4	3S	13.6	24	41	153
3.8:1	8-6	3S	18.3	29	60	206
4.75:1-B	8-6	3S	11.4	20	50	128
4.75:1-B	9-5-	3S	13.9	27	41	156
5.33:1-C	10-6	3S	16.8	32	43	189
6:1-C	12-6	3S	16	33	35	180

Check out our combo's below with Castle Creations ESC's and Planitary Gearbox also available.

Note, this company is no longer around. This is our remaining inventory. Old retail price $99. Take advantage of this "Til It's Gone" special. All sales are considered final, no warranty, no returns.

Product Description

• Function Range Accuracy
• DC Voltage 200mV-1000V +- (0.5%+1dgt)
• AC Voltage 2V-750V +- (0.8%+3dgt)
• DC Current 2mA-20A +- (0.5%+1dgt)
• AC Current 2mA-20A +- (1.0%+3dgt)
• Resistance 200Ω -20MΩ +- (0.8%+1dgt)
• Capacitance 2nF-20u F +- (2.5%+3dgt)
• Frequency 2KHz-20KHz +- (1.5%+5dgt)
• Diode Test -Yes
• Transistor Test -Yes
• Continuity Buzzer -Yes
• Auto Power Off -Yes
• Data Hold -Yes
• Power Supply 9V Battery 6F22 (battery not included)
• Maximum Display 1999
• Product Net Weight 300g
• Products Size 191x 89x 35mm
• Standard Accessories Test Lead, Battery, Manual.
• Case Color is Orange/Yellow

• 3-1/2 digits LCD, Max. reading 1999
• 8 function, 32 Ranges
• Data hold
• Low battery indication
• Auto Power Off
• Overload protection

Accessories:

Test lead; Users Manual;

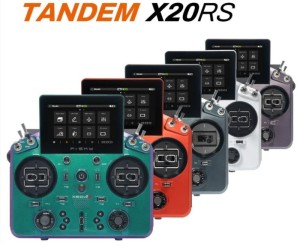

TD-ISRM PRO RF PERFORMANCE

With solid performance based on the dual-band 900M/2.4G RF signal link with multiple operating combinations of RF modes, the TANDEM X20R & X20RS versions are equipped with the TD-ISRM Pro built-in RF module which is capable of supporting multiple protocols (like TW, TD, etc), with same RF capability as X20 Pro editions.

The TD-ISRM Pro RF module has the dual 2.4G TW RF mode and supports simultaneous activation of working under TW and ACCESS R9 modes with the same module. In this configuration, the TW receiver and ACCESS R9 receiver can be connected via the SBUS IN/OUT ports to achieve redundant backup. This RF signal connection solution makes use of three different RF links at the same time in RC applications. This further enhances the RF signal's reliability, particularly in long-distance RC operations scenarios.

DIFFERENCES IN APPEARANCE & FUNCTIONAL INPUTS

The X20R and X20RS have changed from the original X20 design in appearance. The bottom hand grip adopts the overall design of the PRO version, eliminating the need for an additional grip cover, and allowing the bottom part to be fully grasped by the palm for a more comfortable and relaxed grip. Additionally, the Lite-type external module slot has been adjusted to provide more fitting installation space for external modules of different shapes, making it more convenient.

R and RS versions add 2 extra trims, allowing for more precise tunings during the operations. The slider levers on both sides of the transmitter support adjusting the positioning of the center, catering to different users' habits and preferences. The primary input components, including trim caps, center-slider caps, and knobs are all made from metal, offering rugged quality and enhanced durability for outdoor use.

UPGRADED ROBUST ANTENNA HANDLE & EXTERNAL LoRa ANTENNA CONNECTORS

The newly upgraded antenna handle incorporates the good capability of impact resistance facing the tough conditions of outdoor fields. The reinforced and thickened antenna casing is better suited for comfort gripping but also does not compromise the antenna's performance. On the contrary, the redesigned antenna can transmit signal data more effectively, providing pilots with a more reliable flying control experience.

The X20R & X20RS are also equipped with 2 external antenna connectors, which can be mounted with additional 2.4G and 900M antennas for enhancing the RF capabilities working under the LoRa modes, to achieve enhanced long-range control.

BUILT-IN MASS STORAGE & TEXT TO SPEECH FUNCTION

To save the user the trouble of deciding the storage capacity, both R and RS versions have a built-in 8GB flash storage that offers big storage to meet all your radio's storage needs with high data transmission speed.

Thanks to the upgraded storage feature, the TTS (Text-to-Speech) function of X20 RS versions can quickly and conveniently convert typed input English words into spoken speech. This enables the ETHOS system to more flexibly match the triggered operational status using generated speech audio when specific functions are activated and to alert clear outdoors with the digital power amplifier module.

DUAL-SIDE HAPTIC GIMBAL FEEDBACK The gimbal vibration feedback function can be easily enabled or disabled by setting a switch. The dual-sided Gimbal's vibration feedback can operate independently, allowing the configuration to match distinct feedback preferences tailored to various application scenarios for RC enthusiasts.

EASY TRAVELl-ADJUSTABLE MC20R GIMBALS (with ANY DESIRED DEGREE BETWEEN 45? to 60?)

The MC20R Gimbals also has an 8? rotatable panel and can be adjusted to a 45? travel position. What's even better is that the angle is not limited to just 45? and 60?, the MC20R Gimbal allows for adjustment of any travel position between 45? and 60?. To enhance convenience for pilots in outdoor applications, the angle travel position can be directly adjusted using a 1.5mm hexagon screwdriver through the adjustment hole on the Gimbal Panel, eliminating the need to disassemble the radio casing.

Features:

• Built-in TD-ISRM Pro Dual-Band Internal RF Module

 - 900M/2.4G Dual Band TD Mode

- Dual 2.4G TW Mode

- ACCESS 2.4G & ACCESS R9 Modes

- 2.4G ACCST D16 Mode

• Further Improvements for Form Factor Design
• Super Low-Latency and Long-Range Control with Telemetry
• Upgraded Robust Antenna Handle
• 900M/2.4G External Antenna Connectors (LoRa mode)
• 800x480 Resolution Outdoor High Brightness Touchscreen
• 2 Angle Adjustable Slider Levers
• 2 Knobs, 4 Standard Trims with 2 Extra Trims
• 6 Quick-Mode Custom Buttons (Front) and 2 Momentary Buttons (Rear)
• All Knobs, Trims, and Central Linear-Slider with All-CNC Metal Caps
• Built-in 8GB Flash Drive Storage
• Text to Speech (TTS) Function
• Digital Audio Power Amplifier
• Built-in 6-axis Gyroscope Sensor
• High-Speed PARA Wireless Training System
• Data Transmission & Recharge System via USB Type-C Interface
• Haptic Vibration Alerts and Voice Speech Outputs
• MC20R All CNC High-Precision Hall-Sensor Gimbals with 10 Ball-Bearing

 - Dual-side stick haptic feedback (Left/Right can do vibration independently.)

- Easy Travel-adjustable with any desired degree from 45? to 60?

- 8° rotatable panel

Specifications:

• Dimension: 205*213*90mm (L*W*H)
• Weight: 892g(Battery Excl.) / 1024g(Battery Incl.)
• Operating System: ETHOS
• Internal RF module: TD-ISRM Pro
• Number of Channels: Up to 24
• Built-in Flash Storage: 8GB
• Operating Voltage Range: 6.5 ~ 8.4V (2S Li-battery)
• Operating Temperature: -10?C~60?C (14?F~140?F)
• Operating Current: 600mA@7.4V (typ.)
• Charging Current: <=1A +-200mA
• Recharge System for 2S Li-ion Battery (USB Type-C Interface)
• USB Adaptor Voltage: 5V+0.2V
• USB Adaptor Current: >2.0A
• Backlit Touchable LCD Resolution: 800*480
• Compatibility: ACCST D16 & ACCESS & TD & TW receivers
• Lite Type External Module Bay
