Let me share with you a very nice email we recieved 11-12-2009. I think Art built a Micro Stick.

I bought your kit last Sat and today is Thursday. I opened the kit at 7pm. I HAD THE WING AND THE FUSELAGE DONE BY 830PM. This is a great design kit and some how you need to get this out there some how. I mean it is a pleasure to assemble something that is designed this good and the wood was great. I ordered three more kits the next one I will assemble, video the build and post it on You Tube. If it flies half as good as it builds it will be great and I know it will fly well. If you could apply this style building to scale like DR1 or SE5A you would have more orders than you know what to do with. Plus it is that backyard size that is the "now-thing" with lack of flying fields. Good job & thanks, Art Poughkeepsie, NY

Radical RC 1905 Wright Flyer Kit - Product Image

Radical RC 1905 Wright Flyer Kit

Winner of "1st Place CD's Choice Award" Sunday July 8 at 2012 Mid America Electric Flies.

Thanks to Ken Myers and Keith Shaw for all the hard work on this event.

This kit is an outgrowth of our stand-way-off scale Wright Stick. These kits have flown with great success all over the world for years. Many have commented how cool it would be to have the correct color, wingspan and tip shape to make the kit even more scale like. One builder, Peter Sripol made his own Depron wings and flew his at SEFF in 2011. It flew very well and looked as controllable and gentle as the version based on Slow Stick wings. In 2012 there is a possible opportunity to fly at a famous Wright location. I wanted to have a model ready should that develop further. Also, I wanted a new and unique kit for Toledo this year, we decided now was the time. This machine has all the same struts as the original 1905 Wright Flyer. The 1905 was configured a couple different ways both prostrate and seated pilot and actually carried a passenger In 1908/1909 as the first military aircraft. It was the culmination of everything Wilbur and Orville had learned from the first 2 flyers. It has a longer tail and canard moment and was the first version that truly flew well. 2009 was the 100 year anniversary of Military flight. The flyer sold to the military was essentially the 1905 Wright model 3 with seating and control modifications. So, this is a 1905 or 1908 depending on what scale detail you add.

Our Wright Stick was historic in being the first ever sport type Wright Flyer. Our new stand off scale version follows all the same scale lines in all areas possible while still keeping the model simple and rugged.

This is our second open framework kit. We hope to produce a few more in this style. A Curtis Pusher is high on my list as is the Wright EX (Vin Fizz) or perhaps the Wright B Flyer. This is a kit and not an ARF. However it assembles more like an erector set. It will fly well and you'll certainly draw a crowd. I suggest you fly it over a grass field and 10mph wind or less. I've flown in as high as 16mph but less is certainly more fun.

RC Groups Build Thread for the Radical RC 1905 Wright Flyer. RC Groups Build Thread Photo Gallery Radical RC 1905 Wright Flyer Thread Gallery.

Low pass and climb out photos are of Steve Cushing's build. He's added some scale detail such as flying wires and pilot (not included in kit)

Specifications:
Wing Span: 68 inches
Length: 46 inches
Weight: 52 ounces
Power: 200-350W

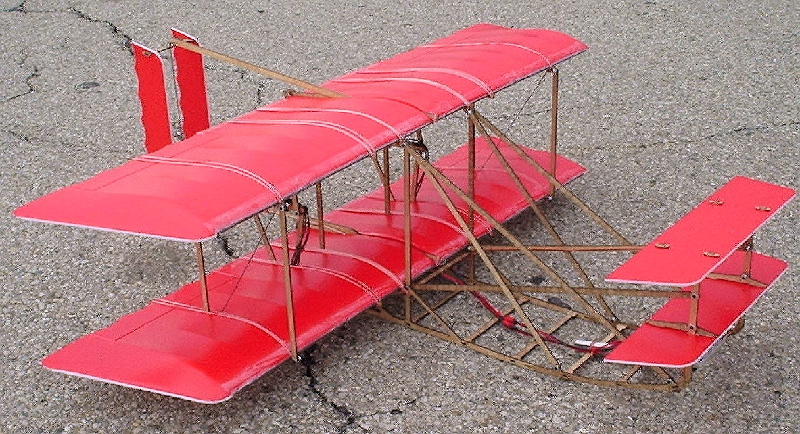

Picture shows kit with bent and painted depron wings. Yes, it will slide along pavement and ROG if you like. Pillow blocks are included for axle mounts if you'd like to create your own landing gear.

Advance Video to 1:28 to see 1905 Wright Flyer.

Box Dimension: 36 x 12 x 4 inches

Box weight: 8lb 6oz

TEMPORARILY OUT OF STOCK


SKU Number: RRC1905WF
Price: $209.00
Motor Options
Motor Connectoring/Soldering
Motor Mounts
Props
ESC Options
ESC Output Soldering
ESC Input Soldering
Servos Rud/Cannard
Servos Wing Warping
Extension & Y Set
Battery
Quantity:


1905 Wright Flyer Kit Accessories Only - Product Image

1905 Wright Flyer Kit Accessories Only

Already have your kit? Need accessories to put her in the air? Order your 1905 Wright Flyer goodies here! RC Groups Build Thread for the Radical RC 1905 Wright Flyer. RC Groups Build Thread Photo Gallery Radical RC 1905 Wright Flyer Thread Gallery.

Specifications:
Wing Span: 68 inches
Length: 46 inches
Weight: 52 ounces
Power: 200-350W

Picture shows kit with bent and painted depron wings. Yes, it will slide along pavement and ROG if you like. Pillow blocks are included for axle mounts if you'd like to create your own landing gear.

Advance Video to 1:28 to see 1905 Wright Flyer.

Choose only 1905 Wright Flyer accessories (NO KIT) below:




SKU Number: RRC1905WFACC
Price: $0.00
Motor Options
Motor Connectoring/Soldering
Motor Mounts
Props
ESC Options
ESC Output Soldering
ESC Input Soldering
Servos Rud/Cannard
Servos Wing Warping
Extension & Y Set
Battery
Quantity:

Radical RC Mini Intern Trainer - Product Image

Radical RC Mini Intern Trainer

This kit represents one of my favorite activities! Trainer Aerobatics. It's a prefect aircraft to learn on and, yet more aerobatic than any trainer you've ever seen. Much like a traditional .40 size model just shrunk down to park flier size. Light weight simple. Can be built with flat or dihedral wing. If your not learning but like me, you love floating a trainer around or just wringing one out, this is the kit for you. Intended to be equipped full house 4ch with ailerons. A fine flyer setup as 3ch if that is your desire. Contains 131 precision laser cut parts.



Find the entire catalog of YouTube video's Here: All Things Crash

"The CrashCast" honors the Mini Intern kit as it's 2012 Build-Along. An international cast of characters from all over the world will be building along with the shows hosts. Check out the show and follow along or more to the point, "build along" with the show. It is a great honor to have one of our kits recognized by the CrashCast and chosen for such a project. For international listeners, shipping for one Mini Intern kit usually weighs about 11 ounces packaged. We re-bill internationals for shipping after the initial order is picked and shipping is calculated. Of course, USA and APO shipping is our simple flat rate for any order.

Important Note: Crash Hancock of the www.CrashCast.com (link is no longer in service) and All Things Crash, sadly passed away in 2017, we are forever grateful, you will be missed.

Specifications:
Wing span: 33"
Wing area: 186 sq. in.
Length: 22.5"
Weight: 7-9oz.
Power:14-70 watts

Requires 2-3 Micro Servos, Micro RX, GWS 50XC to S-300 or small Outrunners. Up to 6" props. ESC 2-10 amp.

Don't forget to order a Graphics set! A great value that adds that finishing touch to your model! PT-19 Army graphics w/windows as shown.

EZone discussion about this kit.

TEMPORARILY OUT OF STOCK





SKU Number: RRCMINIINTERN
Price: $56.99
Motor System
Lipo Batt PK
ESC Speed Control
Extra Props
Prop Reamer
Motor Mount
Micro RX
Micro Servos

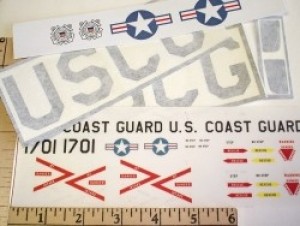

Graphics
Quantity:

Radical RC Intern 66 - Product Image

Radical RC Intern 66

The Intern 66 is our first entry into larger E-models. Under development for some time. Years of teaching experience was used to evolve the traditional trainer beyond yesterday's standards. As one of my clubs instructors for over a decade, I've developed a real joy for teaching RC and a good knowledge of what works best. Additionally, one of my favorite forms of flying is to take a trainer and thoroughly wring it out showing how exciting and aerobatic this kind of model can be. For the Intern 66 project, I wanted the perfect trainer that was also capable of outpacing any trainer I ever flew in the aerobatic department. This kit is the successful result of our efforts to arrive at such a goal.

Power me with any Power system in the 300 to 700 watt range turning 10-13" props and pitch speeds at 60mph or less.

The "US Army" model pictured foreground is setup 5 degree dihedral with GWS outrunner #007, 983 KV, 3S 3200 pack and weighs 3.33lbs. (52oz). Any of the props below would be good depending on the power level you seek. This model feels like a perfect trainer in flight (except I have my throws a little higher than you'd use for instructing) and is capable of barnstorming aerobatics enough to satisfy anybody. In fact, it will just hold a knife edge with minimal mixing. I fly it currently with a 12-8 APC-E prop and it has unlimited vertical early in the pack. However, I like it best for it's reasonably powerful yet "on the wing" aerobatic capability. She is really sweet! For a student, use this setup with 11-5.5 or 11-7 until they are ready to handle more power. The power "IS" in the prop you know. For styling, I couldn't help myself, the tundra tire look just seems to really set off this decal set.

11-5.5, 28.7A, 323 watts, 43mph Pitch Speed, 50oz thrust, Max climb 1542 ft/nin @47 degrees.
11-7, 33.2A, 374 watts, 53mph Pitch Speed, 54oz thrust, Max climb 1790 ft/nin @51 degrees.
12-6, 36.9A, 415 watts, 43mph Pitch Speed, 59oz thrust, Max climb 1938 ft/nin @58 degrees.
12-8, 43A, 484 watts, 54mph Pitch Speed, 63oz thrust, Max climb 2208 ft/nin @64 degrees.

The Navy Trainer shown background is setup 1 degree dihedral, GWS 008 Outrunner 842 KV, 4S 3000 pack. Weight 3.5lbs (56oz.). This is my brutal stump pulling setup. I fly it currently with a 12-6 prop. As you might imagine from the spec's below it's near pattern like, only slightly heavier and vertical is no problem here. More power than I was originally planning for this kit. We put it together to test the lower dihedral and a power system that I thought nobody would ever want to exceed. Note, with 1 degree dihedral, yaw is pure like a pattern ship, Ailerons must be employed to execute a roll or turn. This is truly brute powerful and outside of where I think most people will like this model best, however I present it here for your consideration along with all probable props you might use here.

10-5, 24.9A, 374 watts, 50mph Pitch Speed, 56oz thrust, Max climb 1535 ft/nin @42 degrees.
11-5.5, 34.7A, 521 watts, 51mph Pitch Speed, 73oz thrust, Max climb 2171 ft/nin @58 degrees.
12-6, 45.5A, 683 watts, 52mph Pitch Speed, 89oz thrust, Max climb 2807 ft/nin @90 degrees.

(Note pitch speeds higher than 54mph are NOT reccomended, this is a "tractor", not a "racer".) Over time, consumers have been slowly trained to accept heavier and heavier trainers in the ho-hum 40 size ARF trainer market. The normal range is 5lbs (for a light weight one) and 7lbs near the top of the range with 5.5 t0 6 lbs being more normal. Our Intern 66 smashes today's bloated trainers and sets a new weight standard far superior to even yesterdays finest hand built kits. I've often helped modelers trying to convert 40 size models with 3S power systems. This is usually a big error because the watts per pound you need to get good performance is nearly impossible to obtain in most cases. Here the model is so exceptionally low in weight that you can easily make the "common mistake" a super successful combination here. Never fear, even my lowest wattage setup above will outperform the average glow trainer. I've not listed any slouch setups here.

I am confident in saying this is probably the lightest weight 40 size trainer ever kitted and offered for sale in the history of our sport. It's so light weight perhaps using the word "probably" is being way too cautious but I wish not to offend any excellent accomplishments unknown to me. All in all I feel this is some of the best work I have ever done. You'll really enjoy this build and you'll have a unique and extra special model as a reward.

Specs:
Weight: 3lb 4oz-4lb
Span: 66 inches
Area: 747sq inches
Airfoil: Semi Semetrical - Dave's Secret Recipe Length: 48 inches

Requirements: RX, 3 mini servos, 250 to 700 watt power system; Wheels: Main: 2.25-3.5 inches; Tail: 1-1.25 inches; & retainers.

EZone discussion about this kit. Check out many build photos and see the amazing fit and construction of this kit.




TEMPORARILY OUT OF STOCK

SKU Number: RRCINTERN66
Price: $160.00
Motor System
Lipo Battery Packs
Speed Control
Extra Props
BEC Circuit
Receiver
Servos
Graphics
Quantity:

Radical RC Stick 400 - Product Image

Radical RC Stick 400

Excited to get these out again so you can show the ARF pilots how bad they are missing out!

This model is outstanding on any 400 class outrunner in the 980-1300 KV Range, 3S packs from 700-1300. Think of props from 8-4 to 9-6 depending on KV. 70 to 170 watts is the right range. The model is strong and roomy enough for 300 watts if your desire are of the insane variety.

My favorite setups so far:
Himax 2816-1220, 9-4.5 prop, 3S 1300 Kypom 35C K6 series. Around 19 amps, about 240 watts.
Himax 2812-650, 9-4.5 prop, 5S RRC or Kypom 450. Less than 10 amps! About 165 watts and super effiecient.
GWS 003 Outrunner, 8-6 prop, 3S 600-1300 size 3S pack.

Many systems will work well here. This model is a supurb sport aircraft, probably the best I have ever designed. I know it's going to become the most popular kit we've ever made. Kit comes with both Sport and Stick type flying surface options. Push button wing release, space frame formers/doublers, one or two servo ailerons and simple zip tie on landing gear are standard features.

This model is everything you expect a Stick to be and everything you expect in a Radical RC kit. Construction is fully interlocking and completely self jigging. It is actually possible to build 90% of the kit prior to applying any adhesive. In fact, most of the assembly is squeezing together friction fit -n- tab self jigged assemblies and applying thin CA sparingly at the conclusion of each assembly. Fit is so good, only the most minimal amount of sanding is needed prior to finish application.

Model is designed specifically for E-power. Predrilled firewalls are included as are blank firewalls and a more short nose mounting location if you want to go 1/2 A glow. And, it's not needed since you finished glow flying weight will be about 14-16oz on glow. Model is expected to finish 13-18oz. One of my samples weighs in at 16oz. the other at 17oz. Normal weights for high performance sport aircraft with these capabilities and landing gear is 24oz or more.

Instructions include complete breakdown on motor system choices and theory for this model. Because it's so light weight, you can have a legitimate 2S system here. Our prototypes are flying on 3S (foreground) and 5S (background).

Model is built with conventional 1 or 2 servo - 2 aileron wing. May be upgraded to 3D surfaces with our optional 3D Surface Kits. With 3D Surface Kit you can run 2 servo big ailerons or 4 servo split aileron/flaperon combo. Expanded surface for elevator and rudder included as in photo. Note, the 3D Surfaces Kit only works with the "Sport" Vertical Stab.

EZone discussion about this kit.

Specifications:
Wing Span: 34.4 avg.
Wing Area: 253.5 sq."
Length: 27.9"
Weight: 14-18 ounces
Power: 70-200 Watts (70-200 watts per pound)
Laser Cut Parts: 163




SKU Number: RRCSTICK400
Price: $99.00
Motor Choice
ESC Choice
Props
Battery
3D Surface Kit
Servos
Quantity:

Radical RC Stick 600 - Product Image

Radical RC Stick 600

Our newest kit! The Stick 600 is the same average size of .40 glow powered Sticks. We left all the ARF out of this one and as a result you can beat the weight of other Sticks by 1.5-3 pounds. Yes, I said POUNDS! The Stick 600 is the lightest weight 40 size Stick (40 size in terms of wing area) that has ever been commercially produced. Build one of these and you will have a unique and rare bird. Flying one will sell you forever on the "light is right" concept. This model easily fits in a ball field if your space is confined. Low wing loading means minimum speed will be similar to many park fliers giving the Stick 600 the widest speed envelope of any of our Stick series kits. Like our other kits in this series, parts are provide for Sport or Eindecker like tails and wing tips. Both in photo were built with sport parts.

This model is everything you expect a Stick to be and everything you expect in a Radical RC kit. Construction is fully interlocking and completely self jigging. It is actually possible to build 90% of the kit prior to applying any adhesive. In fact, most of the assembly is squeezing together friction fit -n- tab self jigged assemblies and applying thin CA sparingly at the conclusion of each assembly. Fit is so good, only the most minimal amount of sanding is needed prior to finish application.

Model is designed specifically for E-power. Predrilled firewalls are included as are blank firewalls and a more short nose mounting location if you want to go glow. I warn you, a hot .25 is all you want here, it's weight is that of a .20 size model in a .40 size fame. Also, the nose is a bit too long to balance with a 16oz lump of a .40 or .46 engine up front. And, it's not needed since you finished glow flying weight will be about 2lbs 14oz on glow. (Not a misprint! Real world weight 2oz under 3lbs are typical).

Instructions include complete breakdown on motor system choices and theory for this model. Because it's so light weight, you can have a legitimate 3S system here. Our prototypes are flying on 3S (foreground) and 4S (background).

Model is built with conventional 2 servo - 2 aileron wing. May be upgraded to 4 servo 3D wing with our 3D Surface Kit. With 3D Surface Kit you can run 2 servo big ailerons or 4 servo split aileron/flaperon combo. Expanded surface for elevator and rudder included as in photo. Note, the 3D Surfaces Kit only works with the "Sport" Vertical Stab. Recommending HS-81 or similar servos.

International buyers, kit box is 37" long and may only be shipped Priority International Mail. Kit only to Canada and Mexico roughly $32, Australia $43, UK $38, Japan $40, you get the idea. Approximate weight of boxed kit is 3lbs, ran shipping estimates based on 3lbs 6oz.

Specifications:
Wing Span: 49.75 avg.
Wing Area: 603.5 sq."
Length: 40"
Weight: 46-58 ounces
Power: 300-600 Watts (100-200 watts per pound)
Laser Cut Parts: 175


Fresh kits in packaging now!!!

TEMPORARILY OUT OF STOCK of 3D Surfaces kits


SKU Number: RRCSTICK600
Price: $180.00
Motor Choice
ESC Choice
3D Surface Kit
Quantity:

Radical RC Micro Stick V2 - Product Image

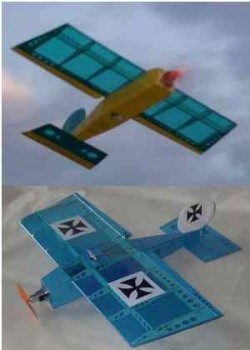

Radical RC Micro Stick V2

The Micro Stick is hot at full throttle, faster than you'd expect, yet the wing loading is that of an indoor flyer. Weighing in at only 3oz, it's hard to believe it only needs your typical park flier gear. 2-3 .2oz (6g) or lighter servos and micro RX. Run motor systems capable of 14 watts or more turning a 3-4" prop. ESC to match and any 350 to 750 2S lipo pack works well. The prop reamer below is suggested as the GWS 3-2 & 3-3 props intended to press onto 1.5mm motors like the 50XC brushed or RRC 12mm Brushless Inrunner listed below. Your sure to have fun with this little beast.

Note, Updated to V2 style in 2007. All Micro Sticks now have space frame formers, landing gear plate (for optional landing gear if you like), tail weight/material reduction, larger magnets, front wing centering pin, former-less battery floor and overall even more rugged. My favorite motor in this class of ship is the Afterburner 12mm 4000kv with 2mm shaft. The 1.5mm shaft allows direct press on of 3-3 and 3-2 props. The 2mm requires drilling the props but is more rugged in a crash. I suggest the MT12A with either Medusa. 2S or 3S for either motor. Even the 4000 on 2S and 3-3 is an extreme performer. The 5300 is crazy! Add a nylon bolt for wing hold down with fast brush-less motors.

Specifications:
Weight 3oz,
Wing Area: 88 Sq. in.,
Wing Span: 17",
Length: 14.5" long.

Wing is held on with a simple magnet! So, you can change the battery in a flash. We know you'll enjoy the new Micro Stick.

Top action photo thanks to Bob Aberle, bottom picture excellent finish and photo by Perry Bowden, Mason Ohio.

International shipping note: box size is 24 inches long and approximately 10oz. weight.

If you select a 72mhz receiver (RX), tell us which channel you need at checkout.



EZone discussion about this kit.

RC MicroFlight magazine review.

Flying Video of RadicalRC Micro Stick by RC Universe/ SKS Video Productions Drop down the page, the Micro Stick is one of 8-10 shown here.

Randy Linerman's Micro Stick private Review

1/20/2005 Hi folks, got the package today. Super. My wife and I put the plane together in about fifteen minutes (no glue, just for fun). I kept saying "this is amazing, how well the pieces fit and how easy it is to build". The most incredible part was how strong the wing was with no glue. Just the pieces snapped into place. What a great kit. .... Thanks and aloha, DP, Hot Springs Arizona.

Shipping weight is approximately 10oz, kit only






SKU Number: RRCMICROSTICKV2
Price: $35.00
Motor System
Motor Mount
ESC Speed Control
Prop Reamer
Extra Props
Lipo Battery Packs
Micro Servo
Graphics
Landing Gear Kit
Quantity:

Radical RC Micro Low Stick - Product Image

Radical RC Micro Low Stick

At long last, our Micro Stick in a Low Wing version!
The Micro Low Stick flies much larger than it is.
Average span is a mere 17 inches, yet she holds normal modern micro gear.
Nothing expensive or exotic required to get this bird in the air.
Endowed with landing gear, Spandau machine gun, spoke covers, faux cockpit pad-ring and all the classic stick character.
Exhibits our updated ultra-rugged Space-Frame Doublers and In-Line Formers, both Radical RC innovations in the RC Kit Field.
Like most of our kits, 90%+ may be assembled prior to gluing due to the press fit and joinery!
Requirements:
Fox Lite XL motor mount; DYS0202 4.4g, Hitec HS-50 or Heco 490/540 servos (sub 0.2oz.); Berg, FMA M5/6, GWS Pico RX (sub 10g); 340 to 760mAh 2S LiPo pack, GWS 12mm 50XC motor, 3X3 prop. Graphics sold separately.
Specifications:
Weight: 3.25-4.0oz.
Wing Span: 17" avg.
Wing Area: 88sq in.
Length: 14.5"
Wattage: 14+
Flying Area: Ball Park or Golf Dome.


If you select a receiver (RX), tell us which channel you need at checkout.


SKU Number: RRCMICROLOW
Price: $42.00
Motor System
Motor Mount
ESC Speed Control
Micro Receiver
Antenna System
Lipo Battery Packs
Extra Props
Prop Reamer
Graphics
Micro Servo
Battery Connectors
Quantity:

Radical RC Micro Bipe - Product Image

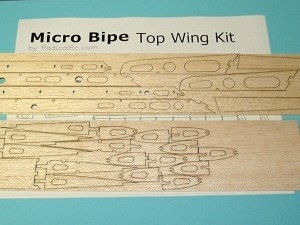

Radical RC Micro Bipe

Get out the fly swatter boys!

If you've grown comfortable with our Micro Stick, perhaps you are ready for the Micro Bipe. This aggressive little beast does not know it shouldn't be able to fly. Kit comes with all the parts required to build with the large top wing (13.8" span pictured) for intermediate pilots or the small top wing (only 10.8"!!!) for the bolder more advanced pilots. Comes complete with pushrod wire, horns, rod end keepers, landing gear wire and wheels.

Suggested (not included) components are Medusa 12mm 4000kv outrunner, 2-3 6g or smaller servos, Micro RX like Berg 4 (sub 10 gram), 350 to 760mah 2S HD lipo pack, props to suit motor with adapters and lots of testosterone! She can be tamed quite a bit with the large top wing but we warn you; she's pure aggression with the small top wing. Build her wisely!

If you select a 72mhz Berg receiver (RX), tell us which channel you need at checkout.

The Micro Bipe weighs in at 4.5 to 5.5 ounces depending on equipment choices. Kit exhibits our new ultra-rugged Space-Frame doublers and inline Formers, both Radical RC innovations in the RC Kit Field. Like most of our kits, 90% of it may be assembled prior to gluing due to the close fit of the lazer cut parts.

If your thinking of other motor, mini outrunners & etc., the requirements are 30 watts plus and 50mph pitch speed or more. Only the smallest lightest motors should be considered.

Additional photo showing both Eindecker and Sport versions. Either version can be built from the kit. The TX shows scale of the bipes.(Note, an error exists in the manual as packaged, the brushed 50XC motor is NOT an option for this kit.

* Asterisk items are Our first and favorite picks. All items listed are good choices.

The Medusa 4000kv on GWS 3-3 prop is my all around favorite setup. A 4-2.5 prop may also be used for less speed and better climb on the 4000kv motor (Requires adapter to 4mm prop). Optionally the RRC 4500 on 3-3 is also good. For more extreeme performance, the Medusa 5300 on 3-2 or 3-3 prop and 2S battery. Be sure to get the Fox Lite mount for any 12mm motor. The 3" GWS props press directly onto 1.5mm shaft motors, the 1.5mm reamer is suggested below to ease pressing on the prop. 1.5mm motor shafts are more easily bent, 2mm shaft motors are also offered. They require drilling the prop out with a #49 (.073") bit and have more rugged shafts.

* Indicates my favored choices.


SKU Number: RRCMICROBIPE
Price: $47.00
Motor System
Motor Mount
ESC Speed Control
Lipo Battery Packs
Micro Receiver
Prop Reamer
Extra Props
Prop Adapter
Micro Servos
Graphics
Quantity:

Radical RC Mini Stick V2 - Product Image

Radical RC Mini Stick V2

The Mini Stick is an excellent small field flyer. We've flown them with golf domes, ball fields and full size flying sites. A ball field area is quite comfortable. Equip with motors from 14 to 70 watt range. This model is an excellent performer on simple brushed motors and of course excellent on brushed systems. Best power systems are usually setup around 3-5" props.

For closer in flying, pick motor towards the lighter lower watt end of the Spektrum. For big sky flying take the larger wattages.

Specifications:
Finished Weight: 5-7 oz.
Wing Span: 23".
Wing Area: 132in. sq.
Fueselage Length: 19".
Radio Required: 3 or 4ch
Servos: 2-3 6g (.2oz) Or Less
Receiver: Any Small Park Flyer Type
Battery: 2-3S 300-750mah

Setup and Performance Chart
Motor# CellsPropAmpsWattsRPMThrust oz.Pitch Speed MPH
Himax 2015-410024x2.58.26123,020855
RRC 1806-250024.5x45.13814,460655
RRC 1806-250034x2.55.25823,250955
RRC 4500 12mm Brushless23x34.33226,140474
RRC 4500 12mm Brushless33x26.16838,870874
GWS 50XC 12mm Brushed23x31.91418,850254
GWS LPS RXC-A 12mm Brushed 4:127x61.8134,810327
Estimates based on manufacturers provided constants using E-Calc. MFG model specifications used in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.

EZone discussion about this kit.

"Dave, Just a note to thank you for the Mini Stick design. It flies better than any other small plane I have ever built!"..... Perry Bowden






SKU Number: RRCMINISTICKV2
Price: $43.00
Motor Sys
Motor Mount
Speed Control
Micro Receiver
Battery Packs
Extra Props
Ream/Adapt
Micro Servos
Graphics
Quantity:

Radical RC Das Mini Low Stick - Product Image

Radical RC Das Mini Low Stick

Das Mini Low Stick is a dream to build and will become your favorite airplane in short order.
Outstanding Sport Aerobatic, Touch-n-Go machine, Speedster or WWI Fantasy scale model.
Outfit and adorn it to your taste.
Landing gear, machine guns, spoke covers and alternate sport or Eindecker wing tips and tail parts included.
For those of you wanting a more tame Mini Low Stick, it flies well on any 12mm motor system.
For more aggressive flying, S-300 brushed or brushless options abound.
Great fun on a small scale! With 111 precision laser cut parts, it builds so fast you will wish there was more!. 3D Jigsaw puzzle construction and the worlds finest design in one model!
Specifications:
Finished weight 5-7.5 oz.
Wing span 23".
Wing area 132in. sq.
Length 19"

Build as 3 or 4 channels, recommend .2oz or less servos,Berg Microstamp 4L RX, Castle ThunderBird 9 for 50XC or 12mm motor, 20Amp ESC for S-300 motor, any high discharge pack from 350 to 1200 mah.

International shipping note: box size is 24 inches long and approximately 16oz. weight.


If you select a receiver (RX), tell us which channel you need at checkout.

RC Groups Discussion


SKU Number: RRCDASMINILOW
Price: $48.00
Motor System
Lipo Battery Packs
ESC Speed Control
Extra Props
Prop Reamer
Motor Mount
Micro Receiver
Micro Servos
Graphics
Quantity:

Radical RC Das Mini Bipe - Product Image

Radical RC Das Mini Bipe

A great handling sport biplane with many innovations. 167 Precision Laser Cut Parts.
Finally, a multi-wing model without 'N' struts or flying wires! Quick field assembly with quick snap on top and bottom wings. Special aileron transfer rods attach with magnetic snap as well. You will be prepped for flight before your buddies turn in their first wing bolt! Build as a Lazy Sunday flier or a sport monster with your brushless system. Includes machine guns and spoke wheel covers for those wanting a custom stand-off WWI look. Easy to fly in space challenged areas like ball fields and local parks. Fast enough to keep up with the big boys at the local club field and slow enough to land like an everyday trainer. Rugged design. Included landing gear means tall grass and runway touch-n-goes are a snap. Get your scarf and goggles on! The mission briefing is just a short build away!

Specifications:
Finished weight: 8-9.5 oz.
Wing span: 23"
Wing area: 243 in. sq.
Length: 18.5"

Radio: 3 or 4 channels Build as 3 or 4 channels, recommend 2-4 servos .2oz or less (Pico, DYS0202, Hitec HS50 or Heco 490/540), Berg Microstamp or GWS Pico RX (sub 10g), S-300 direct drive or equivalent 20mm brushless in or out runner. Castle Pixie 20 for S-300 motor, any high discharge pack from 600 to 1200 mah.

International shipping note: box size is 24 inches long and approximately 16oz. weight.

If you select a receiver (RX), tell us which channel you need at checkout.

Although I think of this model as an outdoor ship, here is a video of one flying in a sports complex.











SKU Number: RRCDASMINIBIPE
Price: $58.00
Motor
ESC
Lipo Battery
Micro Receiver
Extra Props
Prop Reamer
Micro Servos
Graphics
Quantity:

Radical RC Mini Hunter - Product Image

Radical RC Mini Hunter

I wanted a sport fan that would ROG on a decent surface and "sport" fly very well too. There are lots of cool fan models that require bungee launch or a pro pitcher to get them airborne. Also, most ducted fan models only do one thing well, "go fast". The Mini Hunter is something different. With the stock GWS EDF 40's she'll get off pavement in about 12 feet. So, on your club runway that's 400 feet+ long to accommodate turbines, you'll have no trouble taking off across the width of it. In fact, landing or taking off between 2nd base and the pitchers mound will be a breeze at the local ball park. When you get her airborne you'll find you have a very well behaved sport airplane with sharp looks and good aerobatic ability. If you can fly any of our "Stick" models, the Mini Hunter will be a snap for you. Landings are surprisingly slow. Flight times are good with the fans too. The fans are positioned to allow part of the airflow to go over the wing. This nets us a model that can still be fast if you want yet can slow down to make very slow fairly high alpha landings without worry of the tail surfaces or the ailerons quitting on you. You see, like a prop driven model, the control surfaces of this model are in the fan thrust airflow. Kit includes steerable nose gear and my special "Monkey Motion Un-mixer" to un-mix V tail off the tail servos to drive your nose gear steering pushrod. The kit's worth the price just to see how this monkey motion unmixer works! ;-) This is a true "V" tail design. We use magnetic push button wing release so battery change out is a breeze.

The Mini Hunter may also be powered with direct drive props if you like. Any two 12mm motors will fly it. For brushed use Twin 50XC motors. Remember, this model will get off in 12 feet, climb at 45 degrees or better, and is plenty quick with the brushed fans. You do not need brushless to have a cool model here, but we've got it to serve up to those wanting to build a monster.

Newest Power System? Another cool setup is twin 12mm 50XC 4.8V motors wired in series on 2 or 3S.

Specifications:
Finished weight 7.75-9 oz.
Wing span 23".
Wing area 132in. sq.
Length 19.5"

Build as 3 or 4 channels, requires 4 each .2oz or less servos, small RX like Berg Microstamp 4L RX, Castle Pixie 7 or GWS ICS300 for 40mm fans (yes one esc drives both motors for brushed). Twin Castle TBird 9's for twin brushless fans on 3-3 props. Use a high discharge pack, weight budget for the battery will accommodate 2S 640 to 3S 1000.

International shipping note: box size is 24 inches long and approximately 16oz. weight.



RC Groups Discussion

If you select a receiver (RX), tell us which channel you need at checkout.

TEMPORARILY OUT OF STOCK, PRODUCTION PENDING


SKU Number: RRCMINIHUNTER
Price: $67.00
Motor System
Lipo Battery Packs
ESC Speed Control
Extra Props
Prop Reamer
Heat Sinks
Micro Receiver
Micro Servos
Graphics
Quantity:

Radical RC Wicked Wing - Product Image

Radical RC Wicked Wing

Bram Stoker warns keep garlic close at hand!

Possibly the worlds smallest servo driven flying wing ever! I wanted something different from the herd of swept wing pushers you seem to see everywhere. Being In a bit of a Gothic mood at the time, the Wicked Wing was born. This little beast really moves out on a simple 50XC brushed motor. Of course you could fly it with any 12mm brushless motor of your choice and even many of the micro outrunners.
It needs about 14 watts to fly with authority.
Brushless is not necessary but listed below for those wanting a poisonous Wicked Wing.
2 Small servos under 6 grams, an ESC (min 2 amps for the 50XC brushed motor) and a very small RX. We like the Berg 4L for this project the best. This model can be very fast, it's not a good first or second airplane choice. If you're flying well and want something to challenge your skills and wow your friends then this it. remember, at 50mph it covers 77 feet in 1 second! Judicious throttle control is a definite a requirement. This model goes together like a 3D jigsaw puzzle. You will have it framed up and ready for finish in about 1 hour. Fly weight is about 3oz, Span is about 11". About the size of the top wing on a Micro Bipe!


If you select a receiver (RX), tell us which channel you need at checkout.
"I ordered your wicked wing kit a few months ago and just now finished it and flew it for the first time and wanted to let you know how pleased I am with it.
It is a very nice kit and fun to assemble (like a 3D Puzzle). Flying this little thing is challenging but fun. I am surprised of the durability, I have flown it in the ground with about 1ft tall grass several times, several unexpected touch and goes and my cartwheel landings look worse than the crashes.
However, the plane looks as good as new and I am still using the original prop. Just wanted to give some positive feedback.
Thanks, Marlan L. Kingsley"

* asterisk Items are my first and best picks to complete this Kit.


SKU Number: RRCWICKED
Price: $36.00
Motor System
ESC Speed Control
Prop Reamer
Extra Props
Lipo Battery Packs
Servos
Motor Mount
Micro Receiver
Micro Servo
Quantity:

Radical RC Quick Wing 12mm - Product Image

Radical RC Quick Wing 12mm

Feel The Need For Speed?

Capable of big sky flying or ball park low-n-slow! You can trust the Quick Wing in any flight condition. Any 12mm brushless motor system capable of turning a 3-4" prop at 10 watts or more will work well. She is sure to please the most speed hungry wing fanatic while still retaining very good slow speed handling characteristics with the 50XC brushed motor and this is my favorite setup here. Quick "3D Jigsaw Puzzle" assembly in only 1-2 hours. World class laser cutting and design make this one of the quickest and most enjoyable balsa models you will ever build. You'll be amazed at the wide speed envelope the Quick Wing 12mm has. It easily goes from high speed to ball park flying with no bad habits. I'm totally comfortable recommending this kit as a good 2nd or 3rd model as long as you keep the power system modest. Advanced pilots can take the power as far as they like. The model is clearly and advanced flying machine with such power.

Specifications:
Wing Span 14.6"
Wing Area 100 sq. in.
Weight 3-3.5oz.
Length 9"
CG: 1-1.125" (25.4-28.5mm) From LE

Required: Nelson So-Lite Covering;3ch+ Radio with elevon mixing, small RX like Berg;2 Micro servos (sub 0.2oz. under 6 gram); GWS50XC motor or 12mm inrunner brushless; Prop: 3x3 suggested; 250-400mah+/- 2S-3S LiPB; ESC.



If you select a receiver (RX), tell us which channel you need at checkout.
GWS 50XC motor on 3-3 prop is for 2S battery only.


SKU Number: RRCQW12
Price: $39.00
Motor System
ESC Speed Control
Prop Reamer
Extra Props
Lipo Battery Packs
Micro Servo
Micro Receiver
Quantity:

Radical RC Quick Wing 20mm - Product Image

Radical RC Quick Wing 20mm

Maverick, Feel The Need For Speed?

Capable of big sky flying or ball park low-n-slow! You can trust the Quick Wing in any flight condition. Any 20mm brushless motor system capable of turning a 4-6" prop at 50-150 watts or more will work well. She is sure to please the most speed hungry wing fanatic while still retaining very good slow speed handling characteristics. Quick "3D Jigsaw Puzzle" assembly in only 1-2 hours. World class laser cutting and design make this one of the quickest and most enjoyable balsa models you will ever build. You'll be amazed at the wide speed envelope the Quick Wing has. It easily goes from high speed to ball park flying with no bad habits. I'm totally comfortable recommending this kit as a good 2nd or 3rd model as long as you keep the power system modest. Advanced pilots can take the power as far as they like.

Specs:
Wing Span 22.25"
Wing Area 195 sq. in.
Weight 8.5-14oz.
Length 13.75"
Average Cord 9.75"

Required: Covering;3ch+ Radio with elevon mixing; RX;2 Micro servos (HS-55 or similar); 50-200 watt 20mm motor; Prop; 700-1800mah+/- 2S-3S LiPB; ESC.
If you select a receiver (RX), tell us which channel you need at checkout.

Alien and head on photo's courtesy of John Gill.





SKU Number: RRCQW20
Price: $57.00
Motor System
ESC Speed Control
ESC/MotorConnectors
Lipo Battery Packs
Connectors-Battery
Micro Receiver
Micro Servos
Spinner
Quantity:

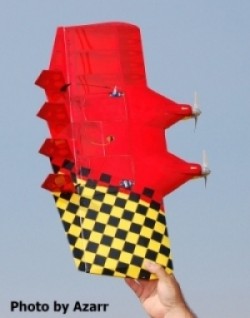

Quick Wing 20mm "Double Trouble" - Product Image

Quick Wing 20mm "Double Trouble"

Feel The Need For Speed?

Capable of big sky flying or ball park low-n-slow! You can trust the Quick Wing in any flight condition. Any 20mm brushless motor system capable of turning a 4-6" prop at 50-150 watts or more will work well. She is sure to please the most speed hungry wing fanatic while still retaining very good slow speed handling characteristics. Quick "3D Jigsaw Puzzle" assembly in only 1-2 hours. World class laser cutting and design make this one of the quickest and most enjoyable balsa models you will ever build. You'll be amazed at the wide speed envelope the Quick Wing has. It easily goes from high speed to ball park flying with no bad habits. I'm totally comfortable recommending this kit as a good 2nd or 3rd model as long as you keep the power system modest. Advanced pilots can take the power as far as they like.

Note, with the advent of the new pusher APC-E props you can do a counter rotating setup. For counter rotating get the spinner sets that say CCW and CW (Counter clock wise and clockwise). Getting two CCW spinners means your going to run both props in the same direction. Most 20mm motors have 2mm shafts and require the PS22 2mm shaft adapter. If your using a motor with a large shaft like the RRC 2880 below you won't need those adapters.

Specs:
Wing Span 28.9"
Wing Area 291.2 sq. in.
Weight 13-18oz.
Length 13.75"
Average Cord 9.75"



Required: Covering;3ch+ Radio with elevon mixing; RX;2 Micro servos (HS-55 or similar); 2 each 50-200 watt 20mm motors; 2, 4-6" matching Props; 700-1800mah+/- 2S-3S LiPB; ESC.
If you select a receiver (RX), tell us which channel you need at checkout.

Pilot Report:
Dave,

Wanted to thank you for the fantastic design of the 20mm Double Trouble Wing. I built this kit up and put some more than modest power up front, and I was impressed with how well it flew. Almost straight up at full power. Stable as an advanced trainer once I made one C.G. adjustment. Slows down to a crawl. Easier to see than my Quick Wing 20mm - which is also a fantastic little performer. The guys at the local flying field love it when I break out these little flyers.

My Double comes in at exactly 16 ounces, and with two Rimfire 20-40-2080 in-runners with 6x4" props - counter-rotating - and a couple 2 cell 1000 MaH LiPo's, that gives quite a nice power to weight ratio. The counter rotating props are nice as there is symmetrical thrust. Loops are perfectly straight. Vertical climbs are effortless.

Sam Lindsay, Flight Instructor, Sarasota, FL



See Quick Wing Video Here!


SKU Number: RRCQW20DT
Price: $73.00
Motor System
Electronic Speed Control
Connectors-ESC & Motor
Lipo Battery Packs
Connectors-Battery
Micro Receiver
Micro Servos
Spinner ClockWise avail. Sept
Quantity:

Radical RC VERTI-GO 125 - Product Image

Radical RC VERTI-GO 125

The Vertigo 125 is a 125% version of the Vertigo 3D S-300 sized park flier.
We wanted a larger Verti-Go and also recognized the trend towards larger and larger models in this park flier category. We built several enlarged versions of the Verti-Go 3D, choosing this design as being the optimum. The "125" sports a symmetrical airfoil. The entire kit is now tabbed and notched with many alignment dovetails. You can probably get this model framed up in the time it takes just to straighten out the typical ARF. Cross grain stiffeners were added to all control surfaces as well as some of the internal parts. In doing this we were able to expand the size of the model while keeping the material thickness the same for most parts. New! You'll see a very novel wing attachment method. No rubber bands and no screws of any kind. It pops on and off in seconds with no tools or parts to lose. The Verti-Go 125 has a lighter wing loading than the smaller version yet retains very similar flying characteristics.



Specifications:
Wing span = 35.1",
Wing Area: 446 in. sq.
Weight = 15-20oz
Length:36 625" .

Yes, at a larger indoor venue you can be flying a one pound plus model that fits in very nicely. Set up mild or wild as a 3D Monster, we think you'll enjoy this latest version of the Verti-Go. We appreciate the opportunity to share it with you!


If you select a receiver (RX), tell us which channel you need at checkout.

Sorry, out of stock, no ETA at this time.


SKU Number: RRCVERT125
Motor System
ESC Speed Control
Lipo Battery Packs
Battery Connectors
Antenna System
Micro Receiver
Micro Servo
Props
Motor Mount

If buying a receiver, enter channel number desired below.:


Radical RC VERTI-GO 3D - Product Image

Radical RC VERTI-GO 3D

The Verti-Go 3D, developed by Jason Noll and Bill Cline of Giant Scale Fame. You've never had a better Harrier micro ship in your hands. Vertical is easy here! Required (not included) 3 or 4 servos (any of the micro servos) Receiver & ESC (suggest Berg RX with Castle Thunderbird 18 ESC). We're running the BD301 5.33:1 and 3 cell 1200HD Lipos. Kit motor system and electronics have been refined by Radical RC for the ultimate flying experience.



Specifications:
Wing Span: 26",
Wing Area: 275 in. sq.
Weight 12-12.5 oz,
Length: 28.5"

Static thrust on recommended BD301 around 16 oz at a pitch speed of 31mph.

BIG NEWS! VERTIGO WINS!2003 Mid America award for "Best Mini Electric". We thank all those who voted for the Verti-Go!

BIG NEWS! VERTIGO WINS!Verti-go 3D wins "Best Flight" at the 2003 JR Indoor Festival Columbus Ohio.

The brushless choices below work well in the Verti-Go 3D, but are not required to have a very cool bird. The Astro setup is a special turn-count and gear ratio made just for Radical RC to optimize the 9-4.7 prop on 3 Li-Poly cells.

Complete Combo packages are available below.

Radio Combo Package includes
R4P RX, 4 Servos (Pico or PS-20 or HE 2003/490),
Y harness,
1 Li-Poly 3 cell 1200,
Black Diamond 301 5.33:1

If you select a receiver (RX), tell us which channel you need at checkout.

Read E Zone review of this kit.

TEMPORARILY OUT OF STOCK


SKU Number: RRCVERT3D
Motor Option
Radio Package!
Micro Receiver
Micro Servos

If buying radio combo package above, enter channel desired below.:


Radical RC E-HORNET - Product Image

Radical RC E-HORNET

The E-Hornet! Anything from 6V S-400 to Astro 020 direct. The Hornet was a great Sport Airplane that went out of production over 20 years ago. This re-think includes legal mods for the WORKS Model Airplane club racing rules and latest world leading laser cut design techniques. This is absolutely the most exotic laser cut kit I have designed to date. Everything the laser can do is done here. You can power it for extreme speed or make it a real pussy cat of a sport plane. I know you will enjoy this model. The E-Hornet with high power and the addition of a folding prop is very much like a Hot-Liner without the price tag. With a 6V S=400 or other sub 100 watt power system it's a nice sport plane. The wing area and airfoil produce an extremely wide speed envelope. Kit has over 110 laser cut parts. Very exotic for a 1/2A sized airplane.

Specifications:
Wing Span: 37"
Wing Area: 224 in.sq.
Weight: 15-24oz.
Length:27"
100mph+ speed rated if you wish-80 to 300 watts.

Seen flown at SEFF, NEAT and the Mid-AM. If your ready for something new and hot that isn't the same mindless drivel that everybody else has, this is it! Wing attaches without any screws or rubber bands. Pop on, pop off! Screws and rubber bands have been around for centuries, we do it better here! Kit features our new Space-Frame-Doubler construction, a Radical RC innovation resulting in ultra light weight yet rugged design.

Select from many options below or design your own power system. The E-Hornet will accept a wide variety of motor systems.

Dan Zaleski's build thread on the E-Zone.




SKU Number: RRCEHORNET
Price: $87.00
Motor Option
Spinner Option
Spinner Collet Options
Speed Control
Soldering Motor
Soldering Output ESC
Soldering Input ESC
Quantity:





buy Radical RC using VISA MC Discover



Radical RC SiteMap



Questions on this Radical RC? Email us at Sales@RadicalRC.com
